11/12kv 0.2/0.2s Class Metering Cubicle
With Load Break Switch (3CT’s -3PT’s) Panel

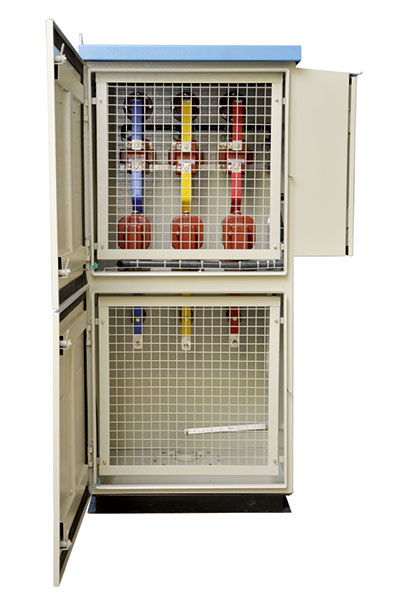

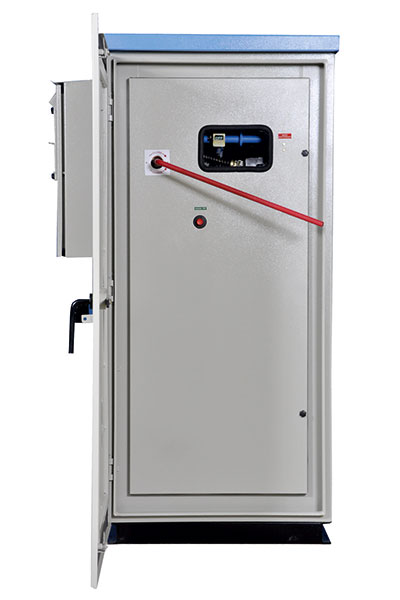

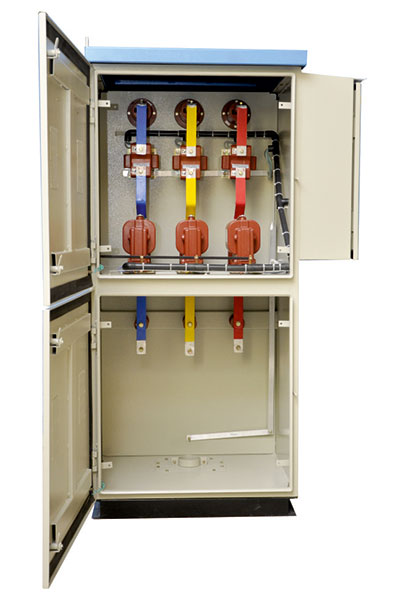

Metering & Switching cubicle is manufactured with Zero bushings i.e. the outgoing & incoming cables are provided with the bottom cable entries as per EB’s.The cubicle is divided into four chambers –one for incoming,one for outgoing with LBS,One for CT’s & PT’s and one more for energy meter.The cubicle is dust proof and pilfer resistant / non tamperable.The cubicle is available in 3Ph.4W Systems.Sealing facilities are as per EB Norms.Assembled with suitable bus bars and the Panel is powder coated with 80-120 microns for its inner / outer texture with High Quality Process.
The Type Tests conducted by us in CPRI Bangalore (Ref. Nos) is as follows (As per IEC & IS Standards):
- Short Circuit : SC15S0692 (26.3KA rms for 1 sec)
- High Voltage : SC15S0692 (12/28/75KV)
- Temperature Rise : SC15S0692 (at 630 Amps)
- IP 55 : EATD SC15S0692 (Category 2)
Applications:
In CPRI Bangalore is as follows:
They are used in Residential / Commercial/Large & Small Industrial Uses.
The HRC fuses used conforms to IS Standards. The Protection /Tripping system is implemented through fuses (stick pin) & relays. The panel is Powder Coated with 60-100 microns for its Inner / outer structure with High Quality Process. Assembled with suitable bus bars and enclosed in durable 14 gauge CRCA sheets designed to endure harsh weather conditions.
